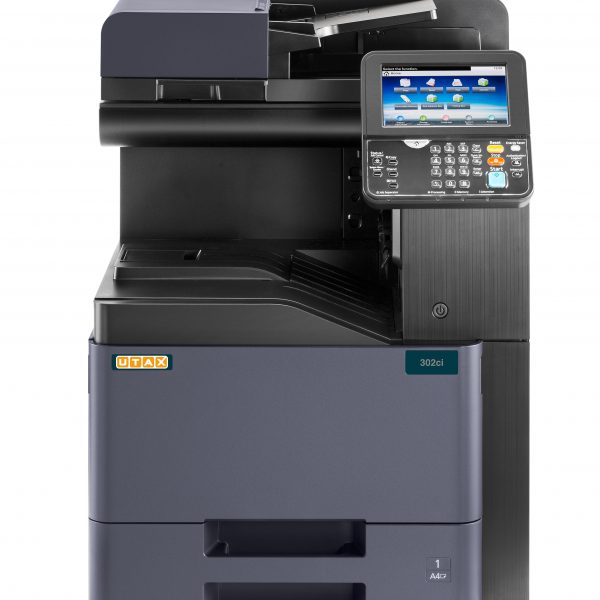

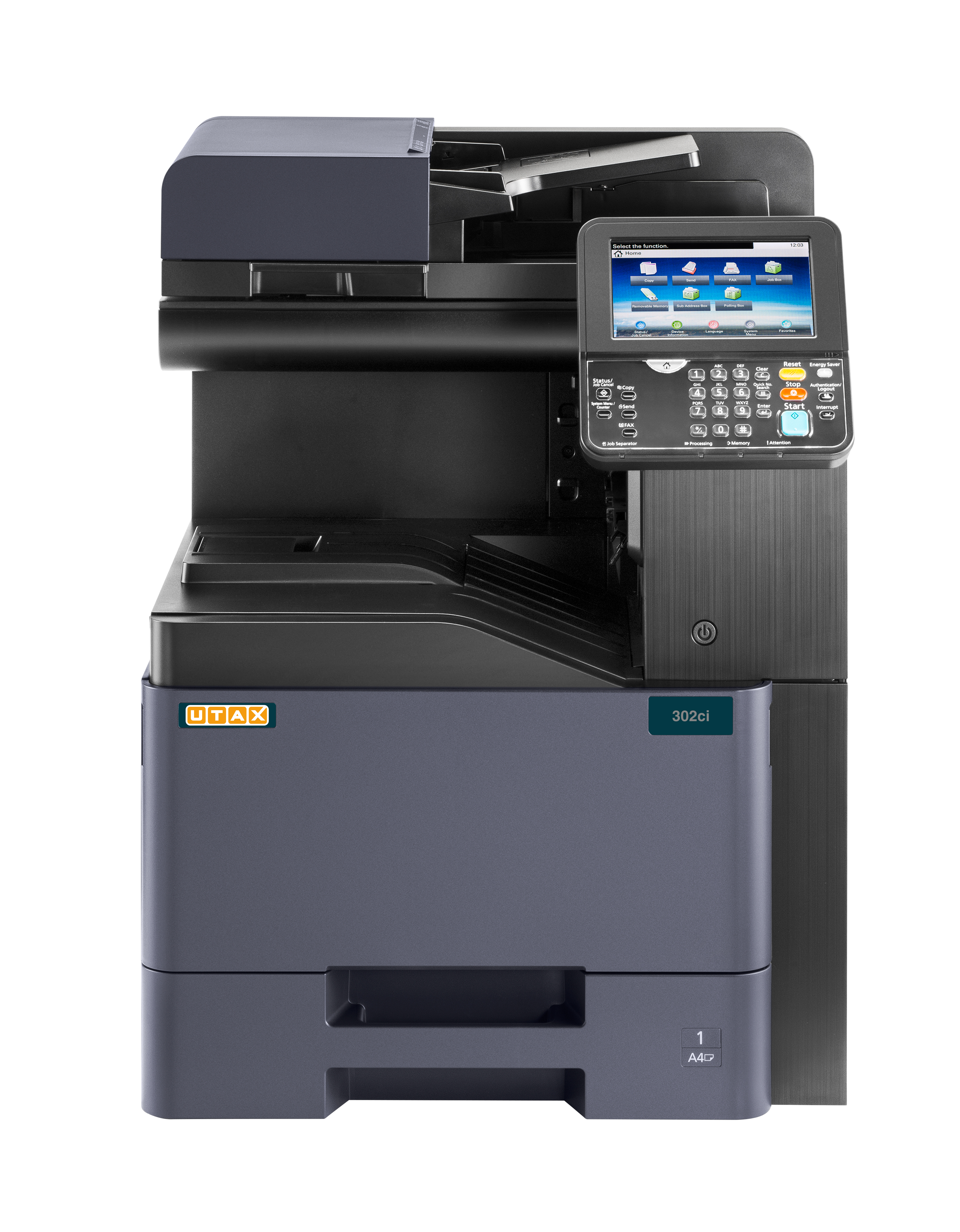

UTAX-302ci

Type Desktop
Functions Copy, Print, Scan, Fax
Print technology Laser colour & mono
Original format max A4 from platen glass
Original feeder 75 sheet A4 (standard, with auto reversing function), A6R-A4, 50-120 g/m² (simplex/duplex), banner: 915 mm length, A4 width
Copy/print speed max 30 A4 pages/min in colour and b/w, duplex: max 30 A4 pages in colour and b/w
First page Copy Colour: 7.8 seconds*, mono: 6.4 Seconds*
First page Print Colour: 8 seconds*, mono: 7 seconds*
Warm-up time 20 seconds*
Copy resolution max 600 x 600 dpi
Greyscales 256
Paper feed 1 x 500 sheet universal cassette (A6R-A4), 100 sheet multi-bypass (A6R-A4, min 70 x 148 mm, max 216 x 356 mm)
paper weight Universal cassette 60-220 g/m², multi bypass 60-220 g/m², duplex 60-220 g/m²
Paper output 500 sheet A4
System memory 1,536 MB RAM, (max 3,072 MB RAM), 32/128 GB SSD**
Continuous copying 1-999
Zoom 25%-400% in 1% steps
Functions Adjustable colour touch screen (7 inch), duplex, job reservation, job programs, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), login by function, 100 management codes, skip blank pages in copy/scan mode, HyPAS capable, etc.
Dimensions/Weight
Dimensions 736.6 x 550 x 507.5 mm (H x W x D; with original feeder)
Weight approx. 49.6 kg (with original feeder)
Environment
Mains voltage 220/240 V, 50/60 Hz
Power consumption approx. 1,317 W max, approx. 497 W in operation, approx. 69 W in stand-by mode, approx. 0.5 W in sleep-mode, TEC value: 0.42 KWh/week
Noise level approx. 50.1 dB(A)/49.9 dB(A) in operation (colour and b/w), stand-by mode: immeasurable (ISO 7779/9296)
Safety GS/TÜV, CE
Print System
Type Integrated within the system
Print formats A6R-A4
Print resolution max 600 x 600 dpi, 1,200 x 1,200 dpi (reduced speed)
Processor ARM Cortex-A9 Dual core 1.2 GHz and ARM Cortex-M3 100 MHz
Interfaces 10/100/1000BaseTX, USB host (2), USB 2.0
Network protocolls TCP/IP, NetBEUI
Operating systems Windows 7/8/8.1/10, Server 2008 R2/2012 R2/2016/2019, Mac OS ex 10.9, Novell NetWare**, Linux
Emulations PCL6 (5c, XL), KPDL 3 (PostScript 3 compatible), XPS, Open XPS, PDF 1.7, PRESCRIBE IIc
Functions Color Optimizer, USB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, barcode printing, quiet mode (half speed mode), Mobile Print (Android/iOS)/Apple AirPrint, Google Cloud Print
Scan System
Scan type CCD colour & mono
Scanformat max A4
Scan speed mono: max 40/17 A4 originals/min (simplex/duplex) with 300 dpi, Colour: max 30/13 A4 originals/min (simplex/duplex) with 300 dpi
Scan resolution 200, 300, 400, 600 dpi
Scan mode Photo, text, photo/text, optimised for OCR
File format TIFF, PDF, PDF/A-1a, PDF/A-1b, high compression PDF, encrypted PDF, JPEG, XPS, Open XPS
Interfaces 10/100/1000BaseTX, USB host
Network protocolls TCP/IP
Operating systems Windows 7/8/8.1/10, Server 2008 R2/2012 R2/2016/2019
Functions Scan to SMB, Scan to e-mail, Scan to FTP, Scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP
Fax System
Optional fax system (11)
Compatibility Super G3
Original format max A4
Modem speed 33.6 kbps
Transmission speed < 3 Seconds with JBIG
Compression mode JBIG, MMR, MR, MH
Fax resolution max 600 x 600 dpi
Fax memory 8 MB (3.5 MB image memory)
Abbreviation dial 200 numbers
One touch dial 100 numbers
Group dial 50 numbers
Operating systems Windows 7/8/8.1/10, Server 2008 R2/2012 R2/2016/2019
Functions Network fax driver, automatic redialling, delayed transmission
*Depending on operating status.
**optional
To enable HyPAS functionality additional memory is required.
